Model SX-14002
- Model SX-14000
- Model SX-14001

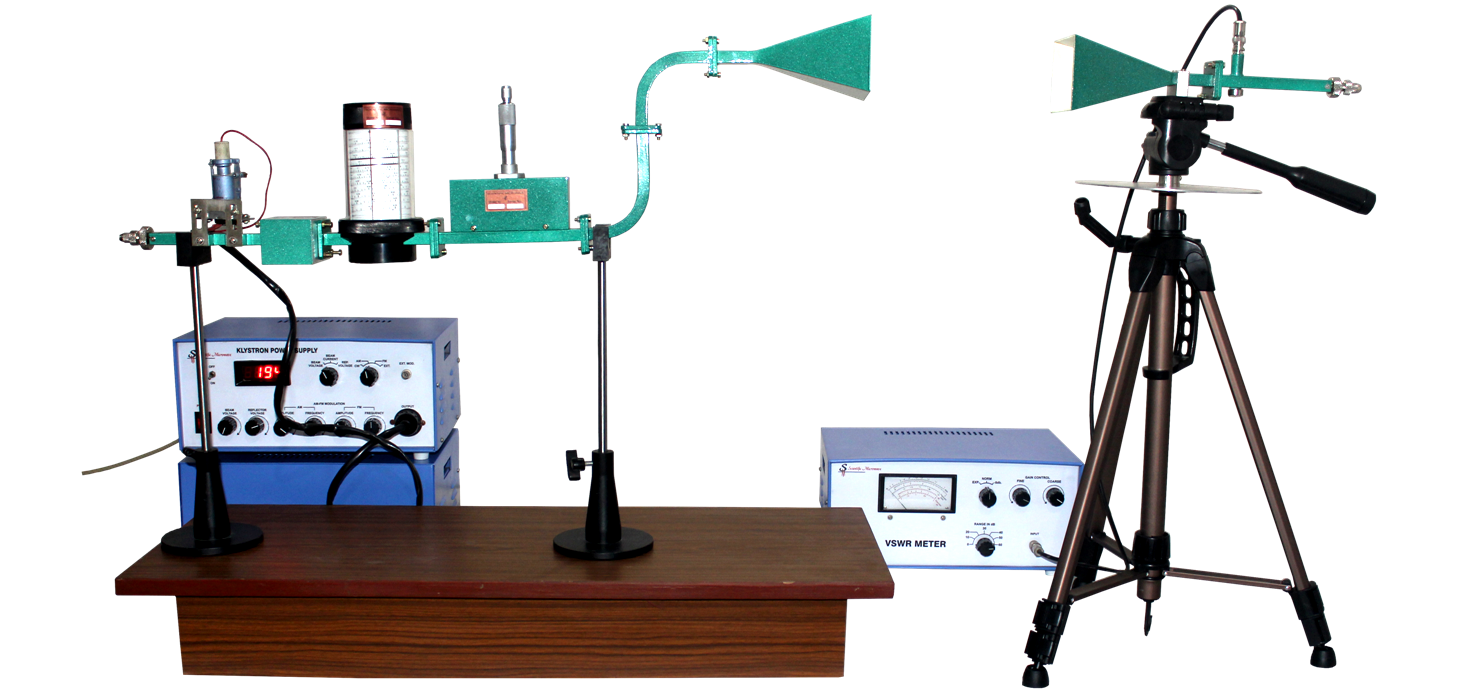

- Model SX-14002 (Waveguide Antenna Trainer Kit)
- Model SX-14003
- Model SX-14004
Model SX-14002
Experiments
- Measurement of gain and radiation pattern of E Sectorial Horn.
- Measurement of gain and radiation pattern of H Sectorial Horn.
- Measurement of gain and radiation pattern of Pyramid Horn.
- Measurement of gain and radiation pattern of Parabolic Disc Horn.
- Measurement of gain and radiation pattern of Dielectrical Antenna.
- Measurement of gain and radiation pattern of Slotted Antenna board wall.
- Measurement of gain and radiation pattern of Slotted Antenna narrow wall.
- Measurement of gain and radiation pattern of Pick Up Horn.
Microwave Training / Measurement Kits
| Components & Instruments | Model No. | Qty. |
|---|---|---|
| Klystron Mount | XKM-139 | 1 |
| Klystron Tube | 2K25 | 1 |
| Isolator | XI-137 | 1 |
| Frequency Meter (DRF) | XFM-126 | 1 |
| Variable Attenuator | XA-101 | 1 |
| Detector Mount | XD-124 | 1 |
| Klystron Power Supply | KPS-610 | 1 |
| Pick Up Horn | XPH-136 | 1 |
| Slotted Antenna Narow Wall | XAN-107 | 1 |
| Slotted Antenna Broad Wall | XAB-108 | 1 |
| Dielectric Antenna | XDA-111 | 1 |
| E Sectorial Horn | XEH-137 | 1 |
| Components & Instruments | Model No. | Qty. |
|---|---|---|
| Mechanical Turn Table | XTT-164 | 1 |
| Standard Gain Horn | XHP-133 | 1 |
| E/H Plane Blend | XB-102 | 1 |
| Waveguide Stand | XS-149 | 5 |
| Cooling Fan | XCF-122 | 1 |
| VSWR Meter | VS-115 | 1 |
| H Sectorial Horn | XHH-136 | 1 |
| Parabolic Disc (with feed)8’’ | XPD-144 | 1 |
| Pyramidal Horn | XHP-133 | 1 |
| BNC Cable | 1 | |
| Fasteners | 1 Set | |
| Tool Kit | 1 |
