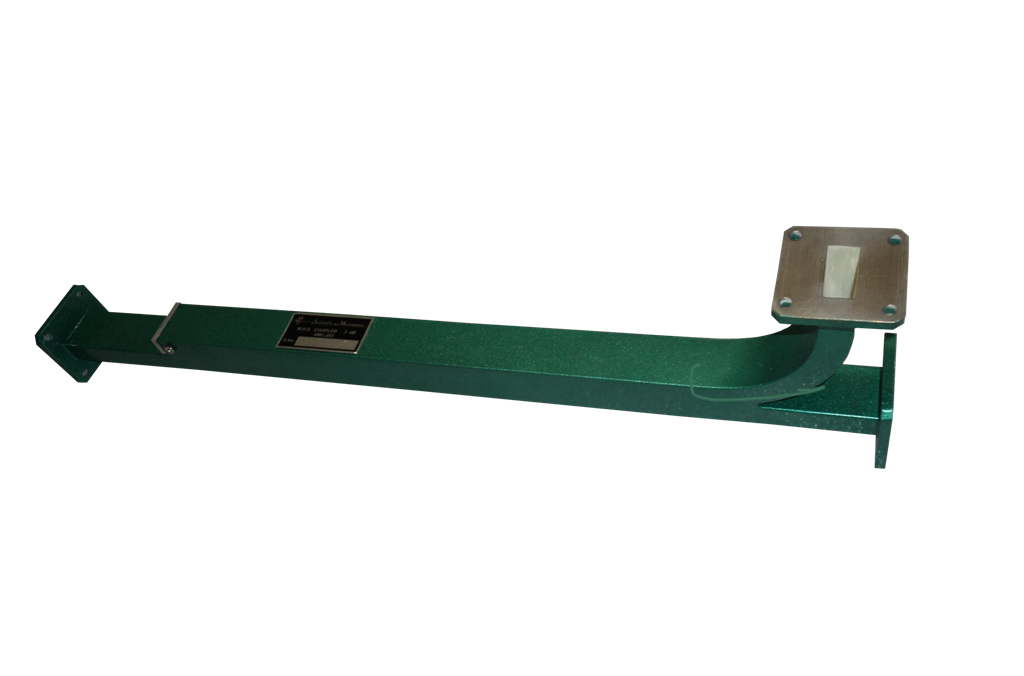

Multi-Hole Directional Coupler
It is a four port waveguide junction consisting of primary main wavelength and a secondary auxiliary waveguide. They can Sample a small amount of microwave power for measurement purpose. They are designed to measure incident and reflected power, SWR Values, provide a signal path to a receiver or perform other desirable operations. The coupling is done through holes on the broad side of the waveguide. The diameter in the no of holes in a row and the number of rows vary according to coupling sector required. Scientific Microwave offers 3dB, 10dB, and 20dB couplers to its customers with minimum VSWR.
Specifications
| Model for 3dB coupler |
Model for 10dB coupler |
Model for 20dB coupler |
Band | Freq. Range (GHz) | VSWR (main line) | VSWR (Auxiliary) | Directivity (min.) |
|---|---|---|---|---|---|---|---|
| SMC-203 | SMC-210 | SMC-220 | S | 2.60-3.95 | 1.1 | 1.2 | 30 |
| CMC-203 | CMC-210 | CMC-220 | C | 3.95-5.85 | 1.1 | 1.2 | 30 |
| JMC-203 | JMC-210 | JMC-220 | J | 5.85-8.20 | 1.1 | 1.2 | 30 |
| XMC-203 | XMC-210 | XMC-220 | X | 8.20-12.40 | 1.12 | 1.2 | 30 |
| KuMC-203 | KuMC-210 | KuMC-220 | Ku | 12.40-18.00 | 1.12 | 1.2 | 30 |
| KMC-203 | KMC-210 | KMC-220 | K | 18.00-26.50 | 1.12 | 1.2 | 30 |
