GPS

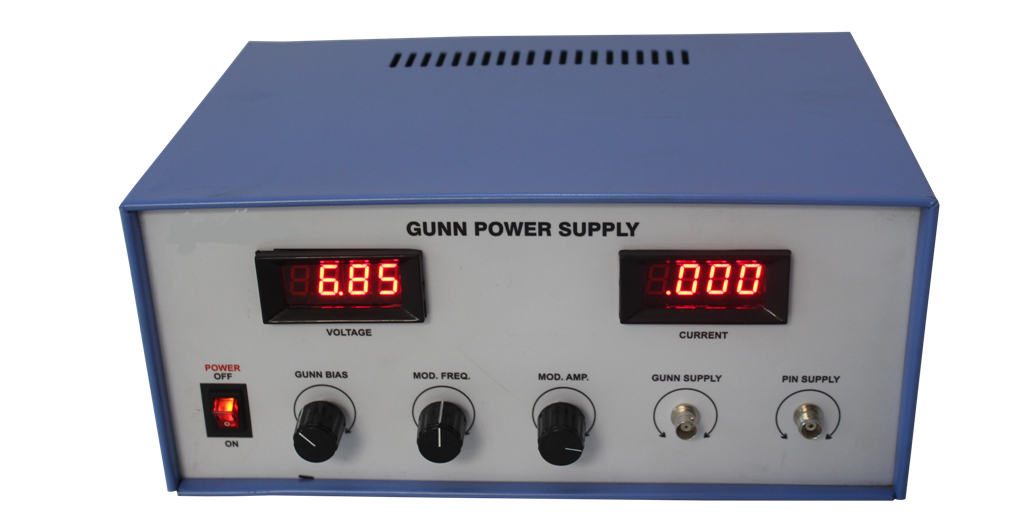

Gunn Power Supply

For Gunn based bench. It is regulated power supply to operate the gunn oscillator. It also contains square wave generator to provide 1 KHz frequency to the pin modulator for amplitude modulation.

MODEL : GS 610 SPECIFICATIONS

Beam Supply

Voltage Range : 0-12 V Continuously Variable

Current : 1 A Max.

Regulation : 0.2% for 10% variation in the main supply voltage.

Ripple : 1mV rms

Modulation Frequency : 1 KHz +- 10%(900-1100Hz)

Output Connector : BNC (F) for Gunn Oscillator & TNC (F) for Pin Modulator.
